Chips

Chips are compact interactive elements used for selecting options or dismissing applied filters. Built with @volvo-cars/css using the chip-selectable and chip-dismissible classes. There are two types: selectable and dismissible.

HybridElectricPetrol

import { useState } from 'react';

const options = ['Hybrid', 'Electric', 'Petrol'];

export function ChipSelectable() {
  const [selected, setSelected] = useState<string[]>([]);

  const toggle = (option: string) => {
    setSelected((prev) =>
      prev.includes(option)
        ? prev.filter((s) => s !== option)
        : [...prev, option],
    );
  };

  return (
    <div className="flex gap-8">
      {options.map((option) => (
        <button
          key={option}
          type="button"
          className="chip-selectable"
          aria-pressed={selected.includes(option)}
          onClick={() => toggle(option)}
        >
          {option}
        </button>
      ))}
    </div>
  );
}

Expand code Collapse code

Selectable chip

Use chip-selectable on a <button>. Toggle selection with aria-pressed.

HybridElectricPetrol

import { useState } from 'react';

const options = ['Hybrid', 'Electric', 'Petrol'];

export function ChipSelectable() {
  const [selected, setSelected] = useState<string[]>([]);

  const toggle = (option: string) => {
    setSelected((prev) =>
      prev.includes(option)
        ? prev.filter((s) => s !== option)
        : [...prev, option],
    );
  };

  return (
    <div className="flex gap-8">
      {options.map((option) => (
        <button
          key={option}
          type="button"
          className="chip-selectable"
          aria-pressed={selected.includes(option)}
          onClick={() => toggle(option)}
        >
          {option}
        </button>
      ))}
    </div>
  );
}

Expand code Collapse code

Small size

Add data-size="small" for a compact variant.

HybridElectricPetrol

import { useState } from 'react';

const options = ['Hybrid', 'Electric', 'Petrol'];

export function ChipSelectableSmall() {
  const [selected, setSelected] = useState<string[]>([]);

  const toggle = (option: string) => {
    setSelected((prev) =>
      prev.includes(option)
        ? prev.filter((s) => s !== option)
        : [...prev, option],
    );
  };

  return (
    <div className="flex gap-8">
      {options.map((option) => (
        <button
          key={option}
          type="button"
          className="chip-selectable"
          data-size="small"
          aria-pressed={selected.includes(option)}
          onClick={() => toggle(option)}
        >
          {option}
        </button>
      ))}
    </div>
  );
}

Expand code Collapse code

Single selection (radio)

For mutually exclusive selection, add role="radiogroup" on the container and role="radio" on each button. Use aria-checked instead of aria-pressed.

HybridElectricPetrol

import { useState } from 'react';

const options = ['Hybrid', 'Electric', 'Petrol'];

export function ChipRadio() {
  const [selected, setSelected] = useState('Hybrid');

  return (
    <div role="radiogroup" aria-label="Powertrain" className="flex gap-8">
      {options.map((option) => (
        <button
          key={option}
          type="button"
          role="radio"
          className="chip-selectable"
          aria-checked={selected === option}
          onClick={() => setSelected(option)}
        >
          {option}
        </button>
      ))}
    </div>
  );
}

Expand code Collapse code

Dismissible chip

Use chip-dismissible on a <div> containing text and a dismiss button. The dismiss button must use slot="dismiss" for correct styling. Use IconButton from @volvo-cars/react-icons with variant="clear" and bleed for the dismiss action.

For a set of removable items, add role="list" on the container and role="listitem" on each chip.

EX90

EX30

XC90

import { IconButton } from '@volvo-cars/react-icons';
import { useState } from 'react';

const initial = ['EX90', 'EX30', 'XC90'];

export function ChipDismissible() {
  const [chips, setChips] = useState(initial);

  return (
    <div
      className="flex flex-wrap gap-8"
      role="list"
      aria-label="Selected models"
    >
      {chips.map((chip) => (
        <div key={chip} role="listitem" className="chip-dismissible">
          {chip}
          <IconButton
            aria-label={`Remove ${chip}`}
            slot="dismiss"
            variant="clear"
            bleed
            icon="x"
            onClick={() => setChips((prev) => prev.filter((c) => c !== chip))}
          />
        </div>
      ))}
    </div>
  );
}

Expand code Collapse code

Loading

Set data-loading="true" and aria-busy="true" on the chip container. The dismiss button is automatically hidden and a <progress class="spinner"> takes its place.

EX90

EX30

import { IconButton } from '@volvo-cars/react-icons';
import { useState } from 'react';

export function ChipDismissibleLoading() {
  const [loading, setLoading] = useState(false);

  return (
    <div className="flex gap-8">
      <div
        className="chip-dismissible"
        data-loading={loading || undefined}
        aria-busy={loading}
      >
        {loading ? (
          <>
            <span className="invisible">EX90</span>
            <progress className="spinner" aria-label="Loading" />
          </>
        ) : (
          'EX90'
        )}
        <IconButton
          aria-label="Remove EX90"
          slot="dismiss"
          variant="clear"
          bleed
          icon="x"
          onClick={() => {
            setLoading(true);
            setTimeout(() => setLoading(false), 2000);
          }}
        />
      </div>
      <div className="chip-dismissible">
        EX30
        <IconButton
          aria-label="Remove EX30"
          slot="dismiss"
          variant="clear"
          bleed
          icon="x"
        />
      </div>
    </div>
  );
}

Expand code Collapse code

Accessibility

Key responsibilities from the WCAG audits (selectable, dismissible):

• Use the right ARIA pattern — aria-pressed for multi-select toggles, aria-checked with role="radio" for single-select. Dismissible chips need a dismiss <button> with a descriptive aria-label (e.g. “Remove EX90”).
• Loading states — use aria-busy="true" and a <progress> element with aria-label so screen readers announce the loading state.
• Keyboard — all chips must be focusable and activatable via Enter or Space. Tab order should follow visual order (left-to-right, top-to-bottom).
• Contrast — text and background contrast in both selected and unselected states needs verification (WCAG 1.4.3, pending audit).

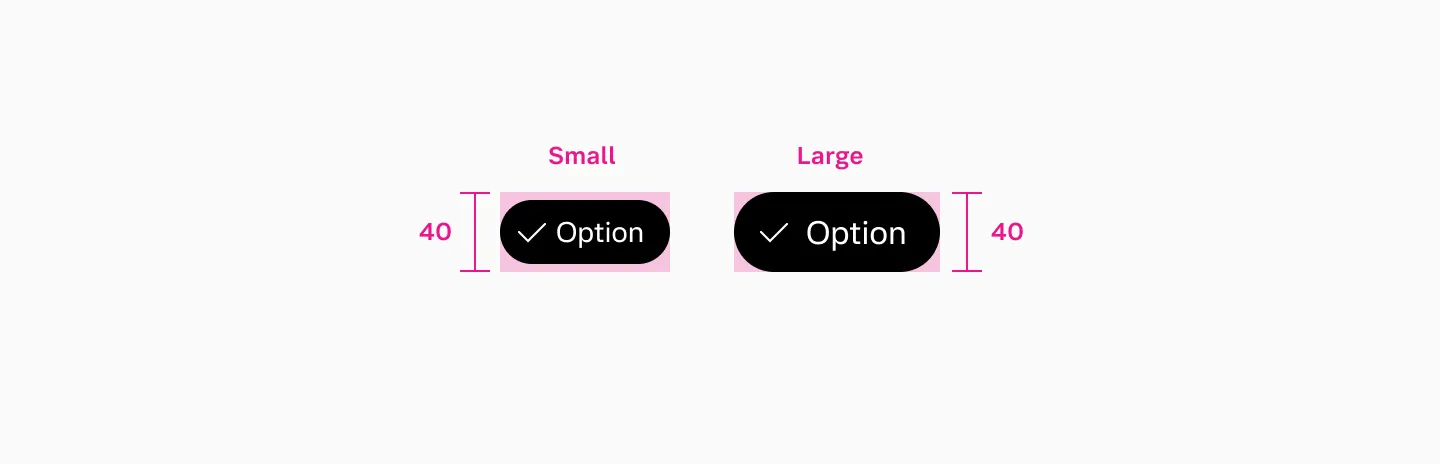

• Target size — chip and dismiss button target sizes should be at least 24×24 px (WCAG 2.5.8, pending audit).
• No unexpected side effects — selecting or dismissing a chip should not cause disorienting changes elsewhere on the page.
